| สถานที่กำเนิด: | เซินเจิ้น กวางตุ้ง ประเทศจีน |
|---|---|
| ชื่อแบรนด์: | RAYMO |
| ได้รับการรับรอง: | RoHS, Reach, SGS, ISO:9001-2015 |
| หมายเลขรุ่น: | J30J-31TJ |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น/ชิ้น |
| ราคา: | 2.99-14.99USD/piece |
| รายละเอียดการบรรจุ: | ถุง PE และกล่อง |
| เวลาการส่งมอบ: | 7 วัน |
| เงื่อนไขการชำระเงิน: | Western Union, T/T, Moneygram, D/P, D/A, Moneygram, L/C |
| สามารถในการผลิต: | 5000 ชิ้น/สัปดาห์ |
| ย่อย: | ITT CANNON MDM Series MICRO-D SERIES | มาตรฐาน: | MIL-DTL-83513 |
|---|---|---|---|
| ประเภทตัวเชื่อมต่อ: | ปลั๊ก | ประเภทติดต่อ: | ชายพิน |
| จำนวนตำแหน่ง: | 25 | ชุด: | ซีรี่ส์ J30J |
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector Description
Raymo J30J series is engineered with a strong yet lightweight aluminum shell and a high-relabill y twist pin contact system with Pos-Aine Aignment.
It is equivalent to ITT Cannon MDM series MIL-DTL-83513 micro-D connectors.
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector main features:
This series is equivalent to USA MDM series;
Nine types :9, 15, 21, 25, 31, 37, 51, 74, 100;
Mated wire section area: 0.1～15 mm2;
This series employs high-density flexible pins;
The locking subassemblies are offered with the connectors according to your order. You should give me information in the papers, if you do not need the locking subassemblies.
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector Parameter
|
Category |
ITT Cannon MDM series micro-D connectors |
|
Part number |
J30J-31TJ |
|
Connector Type |
Plug |
|
Orientation |
Hermetic Square flange |
|
Contact Type |
Male Pin |
|
Number of Positions |
25 |
|
Mounting Type |
Panel Mount |
|
Contact Termination |
Solder |
|
Protection Rating |
IP67 |
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector tecnical performance
|
Test Voltage |
600 Vac a t son level |
|
Current Rating |
3 Ampo |
|
Contact Resistance |
’8 milliohms maximum at 3 amps |
|
Insulation Resistance |
5000 megaohms minimum at 500 Vdo |
|
Magnetic Permeability |
2.0μ(connectors less hardware) |
|
Thermal Vacuum |
per NASA SP-R-0022(space class only) |
|
Mating Life |
500 cycles minimum |
|
Salt Spray |
48 hours ML-STD-1344 Method 1001 Condition B |

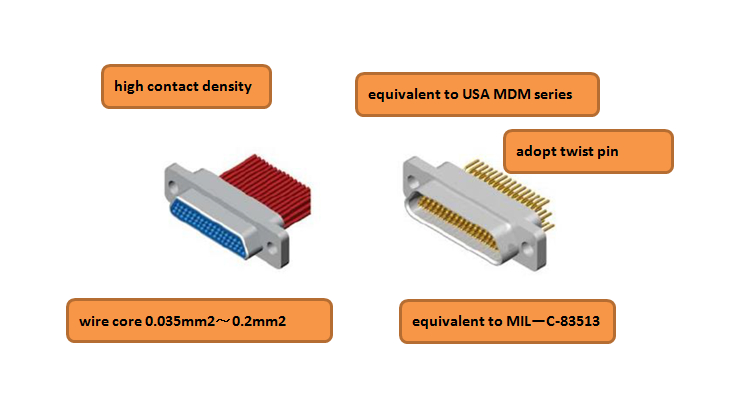

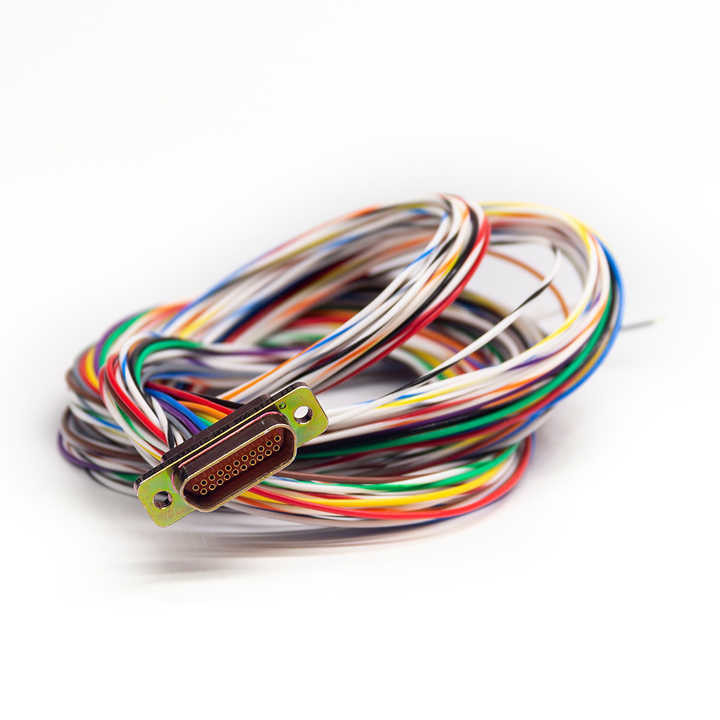

ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector pictures
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector Application
* Navigation systems
* Research centers
* Medical Equipment
* Hand Held Test Equipment
*Satellites
* Robotics
*Geophysical Equipment
* Bar Code Scanners
