| ย่อย: | ITT CANNON MDM Series MICRO-D SERIES | มาตรฐาน: | MIL-DTL-83513 |
|---|---|---|---|
| ประเภทตัวเชื่อมต่อ: | ปลั๊ก | ประเภทติดต่อ: | ชายพิน |
| จำนวนตำแหน่ง: | 21 | เปลือกนอก: | อลูมิเนียม |
| เน้น: | Micro-D Waterproof Power Connector,Waterproof Power Connector IP67 |
||
J30J Series Micro-D MIL-Spec 0.1-15 Mm2 Wire Section Area Waterproof Power Connector Description
Raymo J30J series are small, high-density connectors used where standard d-sub connectors had typically been used, but size and weight are of concern.
It is equivalent to ITT Cannon MDM series MIL-DTL-83513 micro-D connectors.
J30J Series Micro-D MIL-Spec 0.1-15 Mm2 Wire Section Area Waterproof Power Connector main features:
This series is equivalent to USA MDM series;

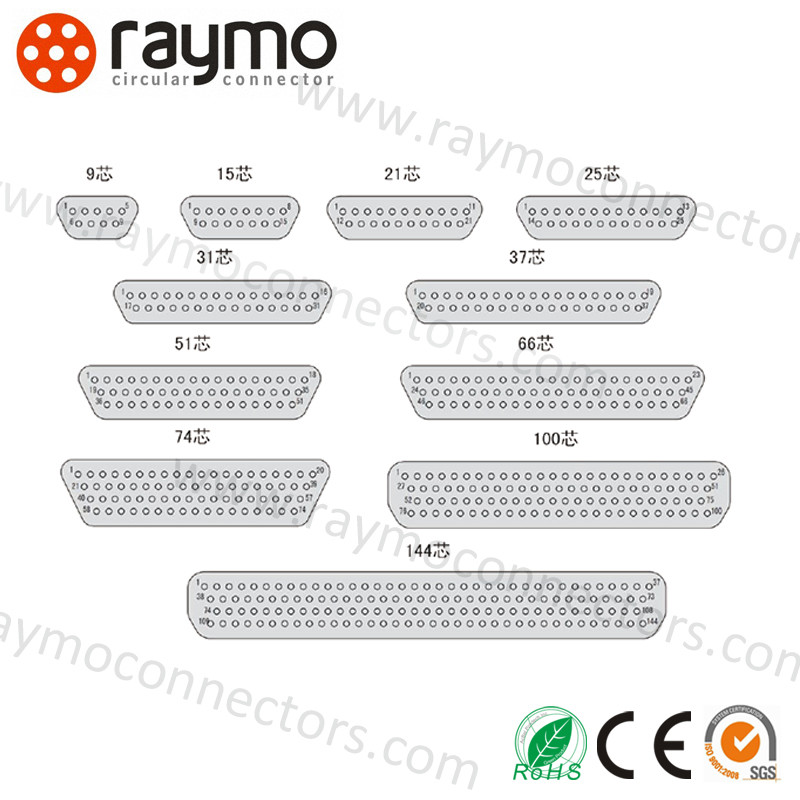

Nine types :9, 15, 21, 25, 31, 37, 51, 74, 100;
Mated wire section area: 0.1～15 mm2;
This series employs high-density flexible pins;
This series comply with the following specification:
Q/Ln.J6-69-92 J30 Series Miniature Rectangular Electronic Connector Technical Condition.
J30J Series Micro-D MIL-Spec 0.1-15 Mm2 Wire Section Area Waterproof Power Connector Parameter
|
Category |
ITT Cannon MDM series micro-D connectors |
|
Part number |
J30J-21TJ |
|
Connector Type |
Plug |
|
Orientation |
Hermetic Square flange |
|
Contact Type |
Male Pin |
|
Number of Positions |
21 |
|
Mounting Type |
Panel Mount |
|
Contact Termination |
Solder |
|
Protection Rating |
IP67 |
J30J Series Micro-D MIL-Spec 0.1-15 Mm2 Wire Section Area Waterproof Power Connector tecnical performance
|
Test Voltage |
600 Vac a t son level |
|
Current Rating |
3 Ampo |
|
Contact Resistance |
’8 milliohms maximum at 3 amps |
|
Insulation Resistance |
5000 megaohms minimum at 500 Vdo |
|
Magnetic Permeability |
2.0μ(connectors less hardware) |
|
Thermal Vacuum |
per NASA SP-R-0022(space class only) |
|
Mating Life |
500 cycles minimum |
|
Salt Spray |
48 hours ML-STD-1344 Method 1001 Condition B |

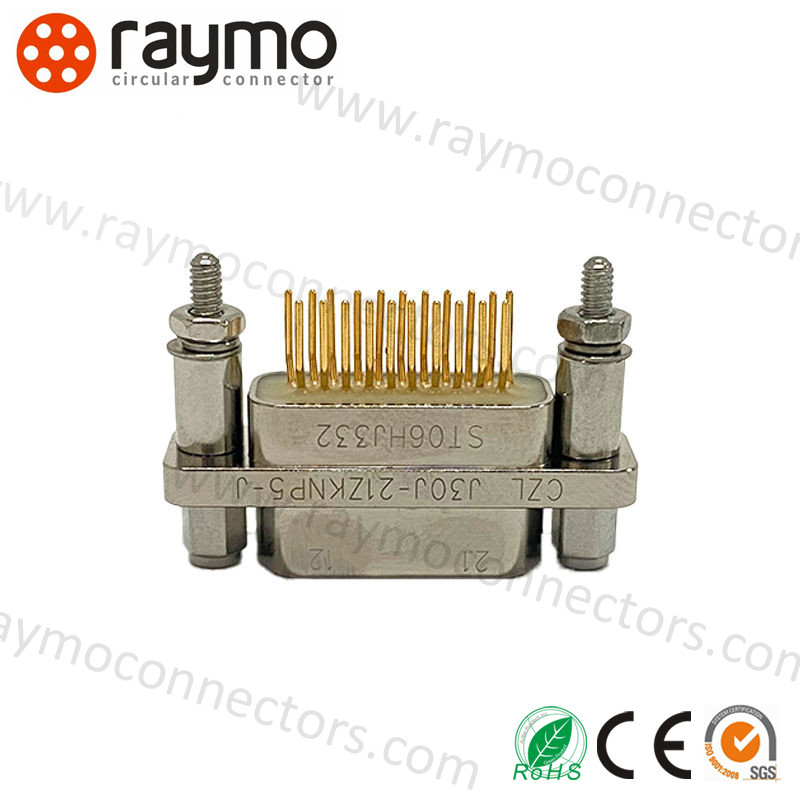

J30J Series Micro-D MIL-Spec 0.1-15 Mm2 Wire Section Area Waterproof Power Connector pictures
J30J Series Micro-D MIL-Spec 0.1-15 Mm2 Wire Section Area Waterproof Power Connector Application
* Avionics, radars
* Missiles and guidance systems
* Medical Equipment
* Hand Held Test Equipment
*Satellites
* Robotics
*Geophysical Equipment
About SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED
As a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and prction for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable...
Our prcts are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc.
