| สถานที่กำเนิด: | เซินเจิ้นประเทศจีน |
|---|---|
| ชื่อแบรนด์: | RAYMO |
| ได้รับการรับรอง: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| หมายเลขรุ่น: | GK0WCM-P12UM00-000L |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | 100ชิ้น/กล่อง |
| เวลาการส่งมอบ: | 5-8 วันทำการ |
| เงื่อนไขการชำระเงิน: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| สามารถในการผลิต: | 5000 ชิ้น/สัปดาห์ |
| ชื่อ prct: | AMC ตัวเชื่อมต่อดึงความหนาแน่นสูง | จำนวนผู้ติดต่อ: | ผู้ติดต่อ 12 คน |
|---|---|---|---|
| ขนาด: | 0ว | แบบอย่าง: | GK |
| วิธีการยุติ: | ประสาน | ติดต่อเพศ: | หญิง |
| การจัดอันดับ IP: | IP68 | ตัวอย่าง: | ฟรี |
| เน้น: | High Density Circular Push Pull Connectors,0W Circular Push Pull Connectors,AMC Push Pull Connectors |
||

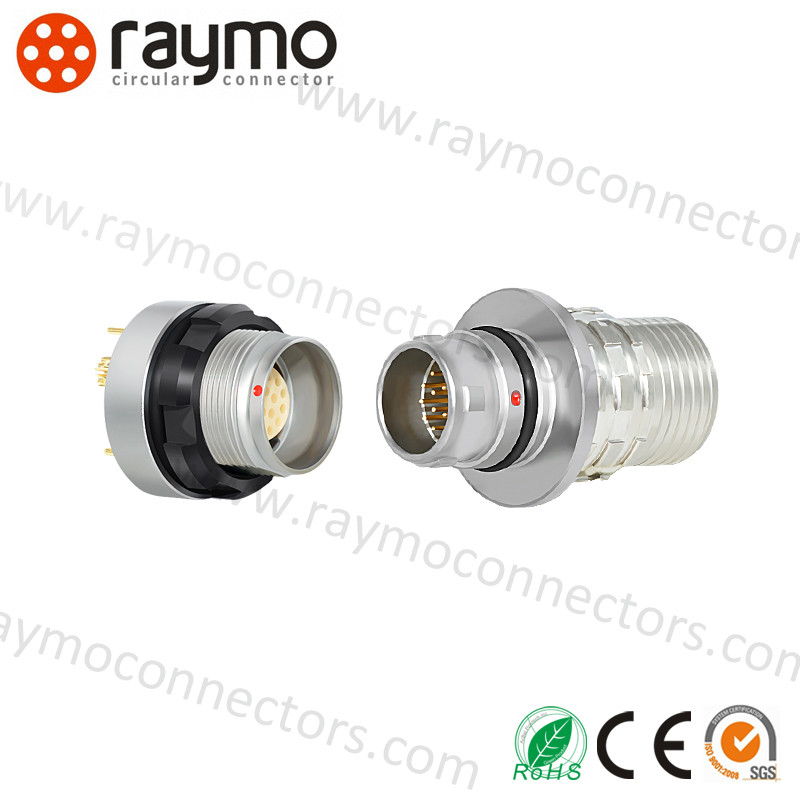

Prct intrce for AMC high-density Circular Push Pull Connectors
Raymo G series is compatible to RAYMO AMC High-Density series connector, which is a rugged, ultra-miniature connector solution for extreme environments.
The connector is available in two locking styles standard. Break-Away connectors can be easily disconnected by tugging on the cable, and are ideal whenever the cable is a potential snag hazard. Screw-Lock connectors remain connected despite environmental conditions, including tension on the cable, shock and vibration.
Prct details for AMC high-density Circular Push Pull Connectors
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular push pull connectors |
| Connector type | socket/receptacle |
| Contact Gender | Pole(Female) |
| Number of contacts | 12 contact |
| Mounting Style | Panel mount |
| Termination Style | Solder |
| Current Rating | 1-5A |
| IP Rating | IP68 |
| Shell Plating | Chrome |
| Shell Material | Metal |
| Wire Gauge | 28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -55°C, +125°C |
| Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt spray corrosion test | >96hrs |
| Climatical Category | 50/175/21 |
| Humidity | Up to 95% at 60°C |
FEATURES for AMC high-density Circular Push Pull Connectors
• High contact-density connector
• Rugged, robust housing with non-reflective
surface plating
• Submersible, watertight protection classes
IP68 / IP69 / IP6K8 / IP6K9K
• Break-Away for maximum safety
• Mechanical coding with color-coded visual
indicator
APPLICATIONS for AMC high-density Circular Push Pull Connectors
• Tactical radios and accessories
• Ruggedized computers and tablets
• Power supply
• Unmanned systems
• Optical devices
• Software defined radios
• Defence and security systems
Our advantage
Original manufacturer
Excellent R&D team
10+ years experience
OEM & ODM acceptable
100% quality tested
100% fast delivery
100% after-sales service
Certificates for AMC high-density Circular Push Pull Connectors
CE
RoHS
ISO:9001-2015
SGS
REACH
FAQ
-What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
-How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
-What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
-How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
