| สถานที่กำเนิด: | เซินเจิ้นประเทศจีน |
|---|---|
| ชื่อแบรนด์: | RAYMO |
| ได้รับการรับรอง: | REACH, CE, SGS,, ISO9001:2015, ROHS2.0, |
| Model Number: | RM-FSX-0U1Q-P09JS52 |
| จำนวนสั่งซื้อขั้นต่ำ: | 1pc |
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | ถุง PE + กล่อง |
| เวลาการส่งมอบ: | 3-5 วันทำการ |
| เงื่อนไขการชำระเงิน: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| สามารถในการผลิต: | 50,000 ชิ้นต่อสัปดาห์ |
| Type: | Fischer Ultimate waterproof connectors | Shell size: | 0U,1U |
|---|---|---|---|
| แอปพลิเคชัน: | ทหาร | Insulator Material: | PPS, PEEK |
| เพศ: | เพศชายเพศหญิง | เข็มหมุด: | 2-16พิน |
| เน้น: | military cable connectors,military plugs connectors |
||

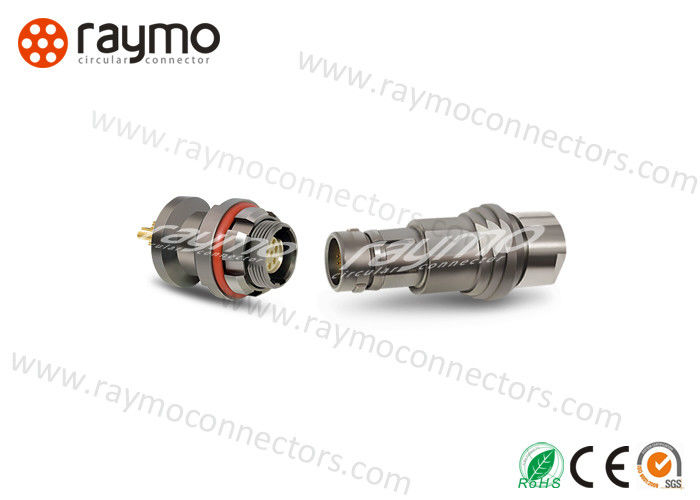

Ultimate Waterproof Military connector, Metal Connector Fischer UP01 UR01

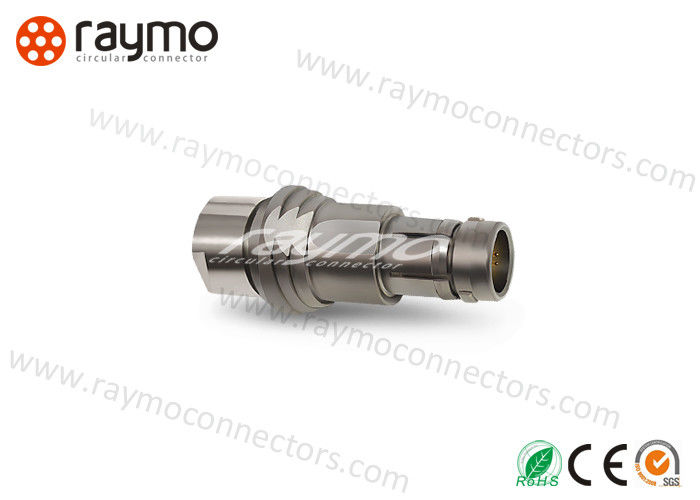

Male cable plug,9pins,natural chrome plated brass shell.
Miniaturization – the trend towards perfection in the smallest design
Prct Technical Quick Details
| RM-U Ultimate Series Short Staright Cable Plug | |||
| Shell size | 0U, 1U | Shell model | Straight plug FGX |
| Gender | Male, Female | Contact No. | 2,3,4,5,6,7,8,9,10,12,14,16,19, |
| MOQ | 1pc | Free Sample | available |
| Endurance(shell) | 5,000 mating cycles | IP Level | IP68 |
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen that is a leading company
in the design, manufacturing and distribution of high-performance connectors and cable assembly solutions.Known for their quality, ruggedness and excellent sealing, our prcts prove to be reliable in the most demanding environments.
Raymo high quality plastic connectors are found that can be widely used in below applications:
Medical, Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP68 | Endurance(shell) | ≥5000 mating cycles |
| 2020.11 | Electronica Munich, Germany |
| 2019 9.24-9.26 | Testing Expo, Shanghai |
| 2018 11.12-11.15 | Electronica Munich, Germany |
| 2017 9.11-9.16 | NAB Show,Netherlands |
| 2016 4.11-4.15 | HK Fair |
| 2015 10.2-10.7 | ICEEB, Brasil |
| 2014 10.11-10.15 | HK Fair |
| 2014 4.11-4.15 | HK Fair |
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
