| สถานที่กำเนิด: | เซินเจิ้นประเทศจีน |
|---|---|
| ชื่อแบรนด์: | RAYMO |
| ได้รับการรับรอง: | ISO:9001-2015 |
| Model Number: | RM-EPE.00.250.NTN |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น/ชิ้น |
| ราคา: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| เวลาการส่งมอบ: | 5-7วันทำการ |
| Payment Terms: | T/T, Western Union, D/A, D/P,L/C, MoneyGram |
| สามารถในการผลิต: | 5000 ชิ้น/สัปดาห์ |
| Prct Name: | 00 Series coaxial connector | Model: | EPE fixed socket with two nuts for printed circuit |
|---|---|---|---|
| ขนาดเปลือก: | 00 | เบอร์ติดต่อ.: | โคแอกเซียล |
| Insulator: | PPS, PEEK | เพศ: | เพศชายเพศหญิง |
| Shell Color: | Silver chrome black chrome | การจัดอันดับ IP: | IP50 |
| Contact type: | printed circuit PCB type | Cable assembled or not: | Yes |
| เน้น: | pcb contacts connector,cable elbow connector |
||
Part No.: |
EPE.00.250.NTN / RM-EPE-00-250KS |
Prct Description: |

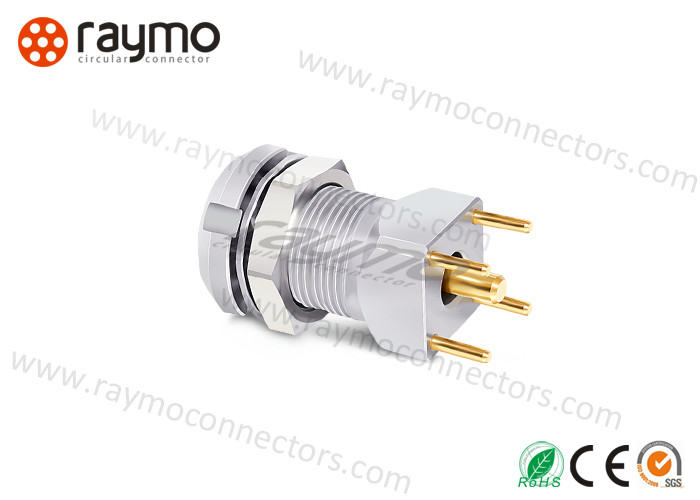

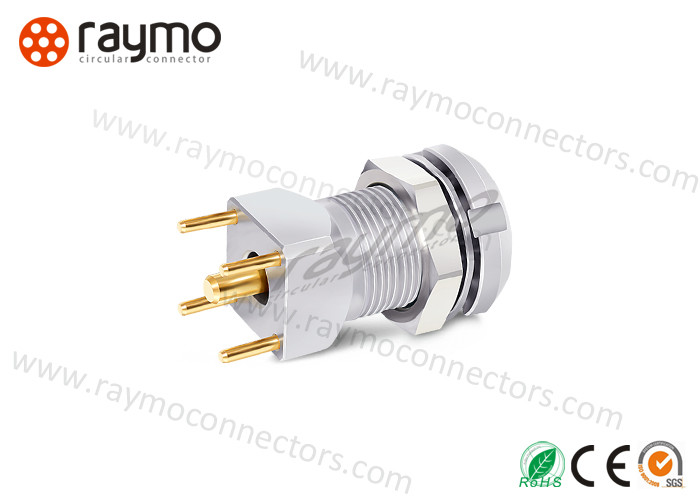

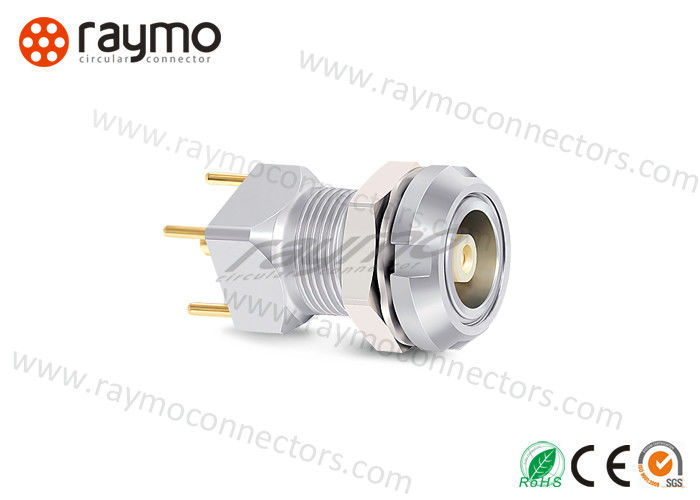

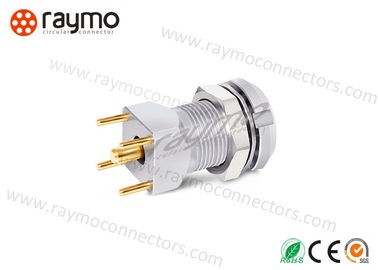

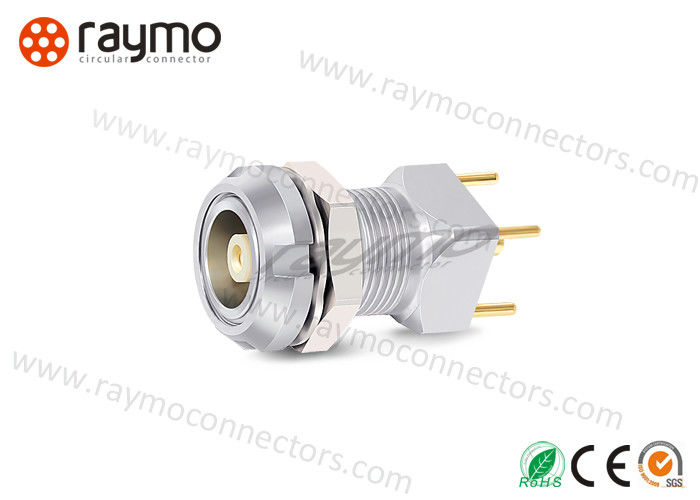

00 Series NIM-CAMAC CD/N 549 type circular push pull connector coaxial connector fixed socket with two nuts, for printed Circuit |
| Main Futures | |
| 1 | Half-moon type Secure high performance push-pull Self-locking system |
| 2 | can be 100% compatible with original Lemo connector |
| 3 | Half-moon locking, coaxial locking |
| 4 | can plated with white or black chrome |
| 5 | Available solder and PCB or right angle PCB contact. |
| 6 | 360° EMC shield |
| 7 | Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach |
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | ≥5000 mating cycles |
