| สถานที่กำเนิด: | เซินเจิ้นประเทศจีน |
|---|---|
| ชื่อแบรนด์: | RAYMO |
| ได้รับการรับรอง: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| หมายเลขรุ่น: | RM-M12-8 |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | 100ชิ้น/กล่อง |
| เวลาการส่งมอบ: | 5-8 วันทำการ |
| เงื่อนไขการชำระเงิน: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| สามารถในการผลิต: | 5000 ชิ้น/สัปดาห์ |
| ชื่อ prct: | ขั้วต่อกันน้ำ M12 | จำนวนผู้ติดต่อ: | 8 พิน |
|---|---|---|---|
| มุม: | มุมฉาก | วิธีการยุติ: | ประสาน/PCB |
| ติดต่อเพศ: | ชาย | การจัดอันดับ IP: | IP67 |
| คะแนนปัจจุบัน: | 1.5-3A | การวางแนวร่างกาย: | ตรง/ข้อศอก |
| เน้น: | M12 Elbow Circular Waterproof Connector,8 Pin M12 Right Angle Connector,Actuators M12 Right Angle Connector |
||

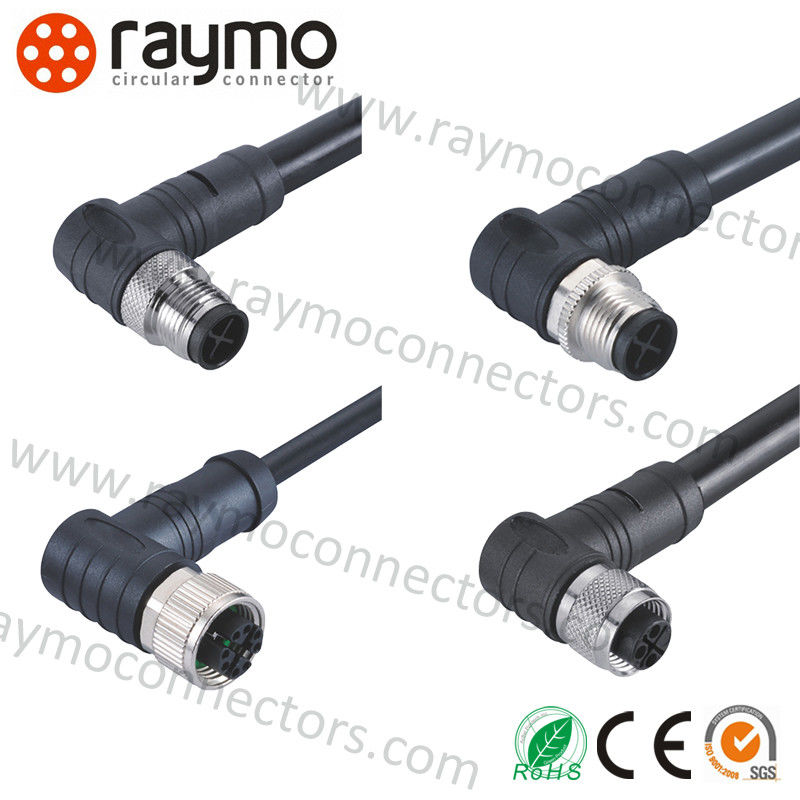

Description for circular waterproof m12 elbow right angle 8 pin for test&measurement
Raymo M12 circular connectors facilitate the simple and cost-effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automatio, such as sensor & actuator, CANopen, DeviceNET, Profibus, Profinet, EtherCAT, Ethernet, Interbus, CC-Link, Motor servo, Digital camera, Railway process control,,, and so on.
Specification for circular waterproof m12 elbow right angle 8 pin for test&measurement
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular waterproof connectors |
| Connector size | M12 |
| Contact Gender | Pin(Male), pole(female) |
| Number of contacts | 8 contacts |
| Mounting Style | Elbow/right angle |
| Termination Style | Solder/print/PCB |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |
Electrical data & Mechanical data for circular waterproof m12 elbow right angle 8 pin for test&measurement
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for circular waterproof m12 elbow right angle 8 pin for test&measurement
Application for circular waterproof m12 elbow right angle 8 pin for test&measurement
Medical industry
Our advantage for circular waterproof m12 elbow right angle 8 pin for test&measurement
FAQ for circular waterproof m12 elbow right angle 8 pin for test&measurement
-What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
-Does your company a professional manufacturer?
A: Yes, we specialized in prcing circular push pull self-latching connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 7 years.
-Can I use my own logo on the prcts?
A:Yes, customers' logo, size and design are acceptable, OEM&ODM are welcomed.
Drawing for panel mount m12 connector miniature circular waterproof sensor connector
